OUR VOLTAGE SOURCE OR INDUSTRIAL CURRENT
Voltage Source Thyristorized

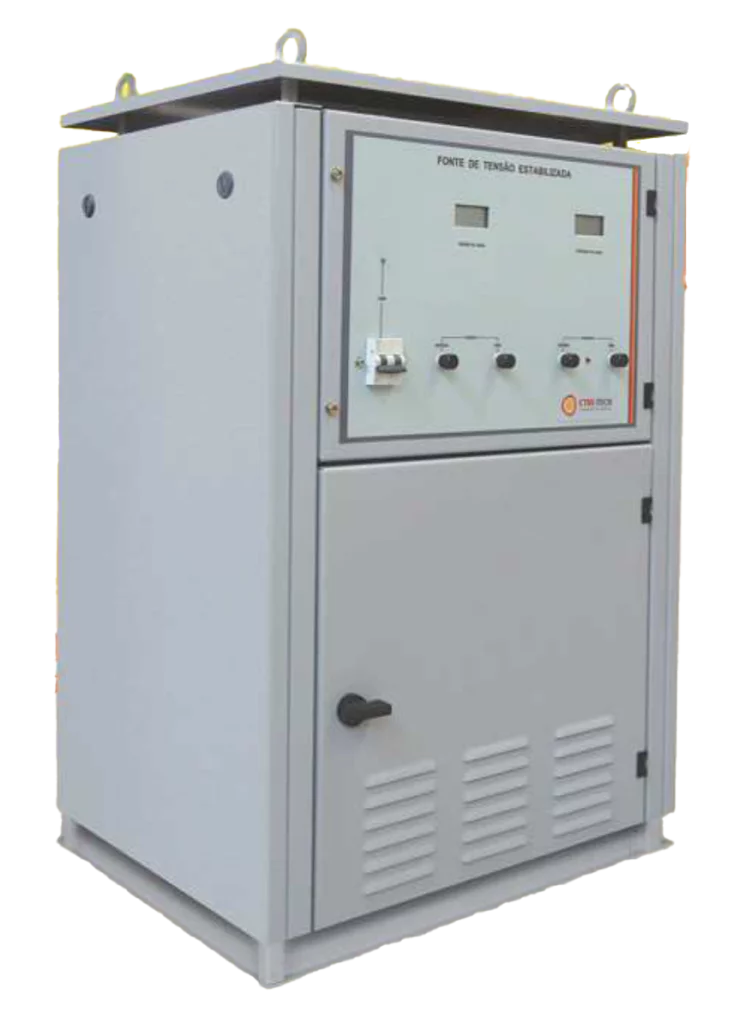

CCK - Power Supply with Fixed Output Voltage CCY - Variable Voltage/Current Power Supply from 0 to Vmax. The regulated DC power supplies of the CCY and CCK series manufactured by CTRLTCH were designed to meet the frequent needs of power supplies with high power density that can be used in any type of environment, including aggressive environments. They are robust power supplies, where voltage and current adjustments can be made continuously through the potentiometers on the front panel.
Family
CCK and CCY (thyristor-controlled)
Input Voltage
110, 127, 220, 380, and 480 V AC Single-Phase or Three-Phase
Frequency
60 Hz
Output Voltage
110, 127, 220, 380, and 480 V AC single-phase or three-phase
Output Current
15 to 1000Acc
Output Power
Up to 150KW or Upon Request
Output Ripple
1% of the Output Voltage
Line and Load Regulation
+/-1%
Protections
• Input Circuit Breaker / Fuse • Overcurrent and short circuit protection at the output (Electronic Protection) • Soft Start of the Output Voltage • Surge Suppressors at the input
